Semi Automatic Flat Screen Printing Machine

We are leading exporters of Semi-Automatic Flat Screen Printing Machine. Superior print quality, ease of adjustments, simple operation for multicolor are some of the reasons why our Machines are the most trusted ones of the industry.



Salient Features:
  • Superior print quality only person required to operate the machine.
  • Easy adjustments & simple operation for multicolour.
  • Short or longer squeeze strokes are easily available by the rod length adjustment.
  • Variable speed is available by the step less hand wheel speed changer. Printing rotation is also freely adjustable by the timer setting.
  • Foot switch for stooping and running machine.
  • Vacuum suction of paper for perfect alignment.
  • Vacuum cut off automatically.
  • Vacuum table is vertically adjustable Forward, Backward, Left, Right, Up & Down.
  • Electric digital counting.
  • Machine can print on any plain surface like on paper, plastic sheets metal sheets etc.
  • Wooden or aluminum frames required.
Sizes available are:
20" × 30"  |  30" × 40"

TECHNICAL SPECIFICATION

Model Minopet L-600 L-800
Maximum print area Inches 15"x 22" (381 x 559 mm) Inches 18" x 24" (456 x 610 mm)
Vacuum Table Format Inches 25 ½ " x 25 ½ " ( 648 x 648 mm) Inches 27 ½ x 27 ½ " (698 x 698 mm)
Maximum Frame Size Inches 24" x 30" (610 x 762 mm) Inches 30" x 30" (762 x 762 mm)
Impression Per Hour 960 to 1200 962 to 1200
H.P Machine 1 H.P 1 H.P
H.P Vacuum 0.5 H.P 0.5 H.P
Power Required 220-250V Single phase 220-250V Single phase
  440 V Three phase 440 V Three phase
Maximum machine Size H-47" or 1194 mm H-47" or 1194 mm
  L-55" or 1397 mm L-55" or 1397 mm
  B-26" or 659 mm B-26" or 659 mm
Weight Approx 300-325 Kgs Approx 300-325 Kgs.

Dimensions Can be Changed Without any Prior Notice



Screen Exposing Machine

Our Screen Exposing Machine is having a screen exposure unit with 1 to 3 kW, our economical Screen Exposing Machine can be comfortably operated by a single person.



Advantages:
  • Light Uniformity: Optimum standard reflector on our screen exposing machine perseveres through solid UV and opposes rust by oxidization. It also helps the light to increase equally, so the whole plate is equitably and relentlessly uncovered.
  • Accuracy Integrating Light Meter: Light collecting meter on precisely regulates the exposure and limits its fault to an extent. It wipes out the changeable exposing result generated by lacking or extra exposure on account of step-and-rehash, which is achieved by maturing of the light's glass tube, insecure illuminating or unsteady current.
  • High-Pace Vacuum System: Our is furnished with oil less, dustless, high tensile UV resistant rubber panel and less sound vacuum pump. Makes a vacuum uniformly and quickly. Fast and prompt contact amongst screen and film, extremely smooth contact base. Useful for printing pictures made up of additional fine and high-thickness lines down to immediate, direct or indirect covers in a dustless chamber.

Salient Features:
  • Superior quality
  • Very economical only one person required to operate machine.
  • Screen Exposure unit with 1 to 3 kw instant start metal halide lamp for high quality result & increased productivity.

Specification :
  • Weight: 150 kg
  • Voltage: 220V
  • Power: 1 to 3 kW
  • Color: Black



Silk Screen Printing Machine

We provide our clients with high quality Silk Screen Printing Machine. These are manufactured as per industrial standards keeping in mind the client's requirements. Our user friendly machines are used for Printing on Dial, Visiting cards, Credit cards, Switch Gear panels, Stationery items and various electrical components.



TECHNICAL SPECIFICATION

Model Minopet L-600 L-800
Maximum print area Inches 15"x 22" (381 x 559 mm) Inches 18" x 24" (456 x 610 mm)
Vacuum Table Format Inches 25 ½ " x 25 ½ " ( 648 x 648 mm) Inches 27 ½ x 27 ½ " (698 x 698 mm)
Maximum Frame Size Inches 24" x 30" (610 x 762 mm) Inches 30" x 30" (762 x 762 mm)
Impression Per Hour 960 to 1200 962 to 1200
H.P Machine 1 H.P 1 H.P
H.P Vacuum 0.5 H.P 0.5 H.P
Power Required 220-250V Single phase 220-250V Single phase
  440 V Three phase 440 V Three phase
Maximum machine Size H-47" or 1194 mm H-47" or 1194 mm
  L-55" or 1397 mm L-55" or 1397 mm
  B-26" or 659 mm B-26" or 659 mm
Weight Approx 300-325 Kgs Approx 300-325 Kgs.

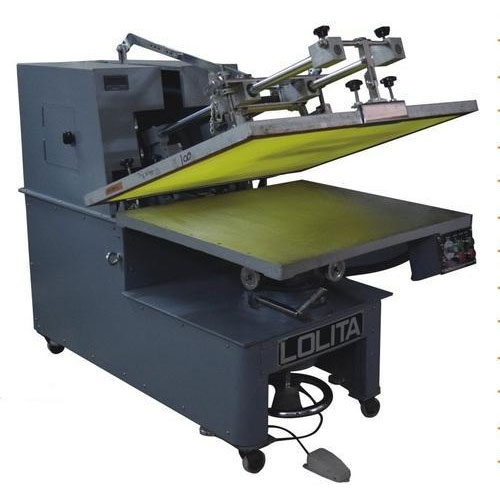

Flat Bed Screen Printing Machine

We are leading manufacturer of the broad array of Flat Bed Screen Printing Machine. This equipment is widely used for screen printing purposes all over the nation. Our product is uniquely designed and developed by our team of qualified engineers, using premium quality raw material in order to instill in it, globally set quality standards. Our products can be availed by us within stipulated time-frame at market leading rates



TECHNICAL SPECIFICATION

Model Minopet L-600 L-800
Maximum print area Inches 15"x 22" (381 x 559 mm) Inches 18" x 24" (456 x 610 mm)
Vacuum Table Format Inches 25 ½ " x 25 ½ " ( 648 x 648 mm) Inches 27 ½ x 27 ½ " (698 x 698 mm)
Maximum Frame Size Inches 24" x 30" (610 x 762 mm) Inches 30" x 30" (762 x 762 mm)
Impression Per Hour 960 to 1200 962 to 1200
H.P Machine 1 H.P 1 H.P
H.P Vacuum 0.5 H.P 0.5 H.P
Power Required 220-250V Single phase 220-250V Single phase
  440 V Three phase 440 V Three phase
Maximum machine Size H-47" or 1194 mm H-47" or 1194 mm
  L-55" or 1397 mm L-55" or 1397 mm
  B-26" or 659 mm B-26" or 659 mm
Weight Approx 300-325 Kgs Approx 300-325 Kgs.



Manual Screen Printing Machine

We offer a comprehensive range of Manual Screen Printing Machine. This printing machine can hold short and large frames exactly for printing. Offered printing machine has frame per screen adjustable feature as per the requirements of clients. Moreover, it can be easily handled because of well equipped functioning. Each printing machine is well tested by experts before its final dispatch. Our printing machine can be availed at effective prices.



TECHNICAL SPECIFICATION

Model Minopet L-600 L-800
Maximum print area Inches 15"x 22" (381 x 559 mm) Inches 18" x 24" (456 x 610 mm)
Vacuum Table Format Inches 25 ½ " x 25 ½ " ( 648 x 648 mm) Inches 27 ½ x 27 ½ " (698 x 698 mm)
Maximum Frame Size Inches 24" x 30" (610 x 762 mm) Inches 30" x 30" (762 x 762 mm)
Impression Per Hour 960 to 1200 962 to 1200
H.P Machine 1 H.P 1 H.P
H.P Vacuum 0.5 H.P 0.5 H.P
Power Required 220-250V Single phase 220-250V Single phase
  440 V Three phase 440 V Three phase
Maximum machine Size H-47" or 1194 mm H-47" or 1194 mm
  L-55" or 1397 mm L-55" or 1397 mm
  B-26" or 659 mm B-26" or 659 mm
Weight Approx 300-325 Kgs Approx 300-325 Kgs.



Rotary Screen Exposing Machine

The high-quality Rotary Screen Exposing Machine delivered by us gives maximum results, making it possible to personalize everything from awards, gifts and jewelry to rhinestone decorated apparel. We are the leader in the industry and our machines are renowned for their performance.


Specification:
  • High Quality Screen Exposing for PCB, Half-tone printing and other Silk Screen printing frames
  • Fully automatic and Economical with auto vacuum and exposure cutoff functions
  • Adjustable Screen Exposure timings
  • Programmable Digital Interface for different Exposing timers
  • High vacuum suction for better grip of film over Screen
  • Available in 18"x24" | 20"x30" | 22" x 32" | 23"x36" | 28"x40" | 33" x 56"
  • Other sizes also available on demand
  • Options of 1KW, 3KW instant start.
  • Brand/Make: LOLITA
  • Voltage: 220 V / 440V
  • Color: Grey
  • Power: 1 to 3 kW
